White Paper: Enterprise Service Bus (ESB) – Architecture, Strategy, and Implementation for Scalable Application Integration
1. Executive Summary
In an era of digital transformation, organizations are increasingly dependent on diverse software systems that must work together in real-time. Whether integrating ERP, CRM, e-commerce, cloud services, or legacy databases, the complexity of system interconnectivity can cripple innovation and scalability.
An Enterprise Service Bus (ESB) provides a standardized middleware infrastructure that enables interoperable, scalable, and secure communication between disparate systems and applications. Positioned within a Service-Oriented Architecture (SOA) or a hybrid cloud-native environment, ESB offers not only integration but agility, resilience, and business alignment.
This white paper presents a comprehensive view of ESB, exploring its architecture, functionality, strategic value, implementation roadmap, comparison with modern alternatives like microservices and Kafka, and how it can serve as a foundation for digital success.
2. Introduction: The Integration Imperative
Modern enterprises operate in heterogeneous IT landscapes, often comprising:
- Legacy systems built on mainframes or proprietary protocols
- Modern SaaS applications (e.g., Salesforce, Workday)
- Cloud infrastructure (e.g., AWS, Azure)
- IoT devices and mobile apps
Without a cohesive integration strategy, organizations face:
- Data silos and inconsistencies
- High maintenance costs for point-to-point connections
- Fragile systems with poor scalability
An ESB addresses these challenges by functioning as an integration hub, handling data exchange, transformation, security, and orchestration of services.
3. ESB Architecture: Components and Workflow

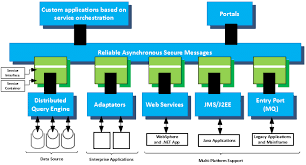

![Diagram: ESB Architecture Overview – Applications ↔ ESB ↔ Services]
3.1 Core Components
- Adapters/Connectors: Interface with applications, databases, and protocols.
- Messaging Engine: Routes and transports messages (e.g., JMS, AMQP).
- Transformation Engine: Converts message formats (e.g., XML ↔ JSON).
- Service Registry: Maintains metadata and endpoint references.
- Orchestration Engine: Controls the flow and business logic across services.
- Security Module: Manages authentication, authorization, and encryption.
3.2 Key Functionalities
|
Function |
Description |
|---|---|
|
Message Routing |
Directs messages to appropriate services based on rules. |
|
Data Transformation |
Resolves differences in data formats and schemas. |
|
Protocol Mediation |
Bridges systems using different protocols (e.g., SOAP, REST, FTP). |
|
Transaction Management |
Ensures atomicity and consistency across distributed systems. |
|
Monitoring & Logging |
Offers observability, diagnostics, and auditing capabilities. |
4. Use Cases Across Industries
|
Industry |
Use Case |
Value Delivered |
|---|---|---|
|
Retail |
Synchronize orders, inventory, CRM, and POS |
Real-time operations, customer satisfaction |
|
Banking |
Integrate core banking, AML, and mobile apps |
Compliance, customer engagement |
|
Healthcare |
Interface EHR, lab systems, insurance platforms |
Data accuracy, improved patient care |
|
Logistics |
Connect GPS tracking, billing, and ERP |
Streamlined delivery and accounting |
|
Telecom |
Provision services through billing and CRM |
Faster onboarding, reduced churn |
5. Benefits of ESB Implementation
Technical Benefits
- Standardized integration protocols and interfaces
- Enhanced system decoupling
- Reusability of services across departments
Business Benefits
- Faster time-to-market for digital services
- Reduction in total cost of ownership (TCO)
- Improved governance and compliance through centralized monitoring
Organizational Benefits
- Accelerated digital transformation
- Easier onboarding of third-party partners
- Enhanced customer experiences through real-time data exchange
6. ESB vs. Other Integration Models
|
Criteria |
Point-to-Point |
ESB |
Microservices |
Event Streaming (Kafka) |
|---|---|---|---|---|
|
Complexity |
High |
Moderate |
Moderate |
High |
|
Scalability |
Low |
High |
High |
Very High |
|
Flexibility |
Low |
High |
High |
High |
|
Use Case Fit |
Small projects |
Enterprises with diverse systems |
Agile deployments |
Real-time data & analytics |
|
Tooling |
Custom |
IBM, MuleSoft, Apache Camel |
Spring Boot, Docker |
Apache Kafka, Flink |
Key Insight: ESB is well-suited for enterprise-grade, regulated, or hybrid architectures requiring robust mediation and orchestration.
7. Leading ESB Platforms
|
Product |
Vendor |
Notes |
|---|---|---|
|
IBM App Connect / Integration Bus |
IBM |
Enterprise-grade with Watson integration |
|
Mule ESB / Anypoint Platform |
MuleSoft (Salesforce) |
Hybrid cloud-native integration |
|
Apache Camel |
Apache |
Lightweight, open-source DSL-driven |
|
Microsoft Azure Service Bus |
Microsoft |
Ideal for Azure-based architectures |
|
Oracle Service Bus |
Oracle |
Strong SOA support, ideal for Oracle stacks |
|
WSO2 ESB |
Open Source |
Enterprise-class, API-driven |
8. ESB Implementation Strategy
8.1 Planning Phase
- Assess integration needs (systems, data types, protocols)
- Define business goals and KPIs
- Select appropriate ESB platform and hosting model (on-prem, cloud, hybrid)
8.2 Design & Architecture
- Establish canonical data models
- Define routing and transformation rules
- Ensure high availability and disaster recovery planning
8.3 Development & Testing
- Build adapters/connectors
- Create transformation maps
- Conduct unit and system tests, including fault tolerance
8.4 Deployment & Monitoring
- Containerize components (Docker, Kubernetes)
- Integrate with observability platforms (ELK, Prometheus, Datadog)
- Implement RBAC, logging, and alerting mechanisms
9. Common Pitfalls and Best Practices
|
Pitfall |
Recommendation |
|---|---|
|
Over-customization |
Use configuration over code where possible |
|
Inadequate monitoring |
Integrate observability early in design |
|
Poor governance |
Maintain a central service registry |
|
Rigid data models |
Design loosely coupled services and payloads |
|
Underestimating transformation complexity |
Invest in robust testing for data mapping |
10. Future of ESB in Cloud-Native Era
While microservices and serverless architectures gain momentum, ESBs continue to evolve:
- Cloud-native ESBs support containerized deployment (e.g., Red Hat Fuse, Camel-K)
- Integration of AI and machine learning for smart routing and anomaly detection
- Support for event-driven architecture (EDA) and real-time analytics
- Alignment with API Management and DevOps pipelines
11. How KeenComputer.com and IAS-Research.com Can Help
KeenComputer.com – Digital Integration Services
- ESB planning, migration, and platform selection
- Implementation using open source and commercial ESBs
- Legacy modernization and adapter development
- Cloud-based ESB deployment with Docker/Kubernetes
⚙️ IAS-Research.com – Engineering and Systems Expertise
- Protocol translation (MQTT, HL7, ISO 8583, etc.)
- Custom middleware and microservice wrappers for ESB
- Integration testing and QA automation
- AI-driven ESB augmentation (e.g., intelligent routing, error prediction)
Together, they deliver cost-effective, compliant, and scalable ESB solutions tailored to your business context.
12. Conclusion
An Enterprise Service Bus is not just middleware—it's an essential architectural pattern that enables enterprises to meet the demands of digital agility, data integrity, and interoperability.
By simplifying integration, improving maintainability, and reducing operational overhead, ESBs empower organizations to innovate confidently and scale sustainably.
For organizations navigating complex digital transformations or hybrid environments, an ESB is a mission-critical enabler—not a legacy relic.
